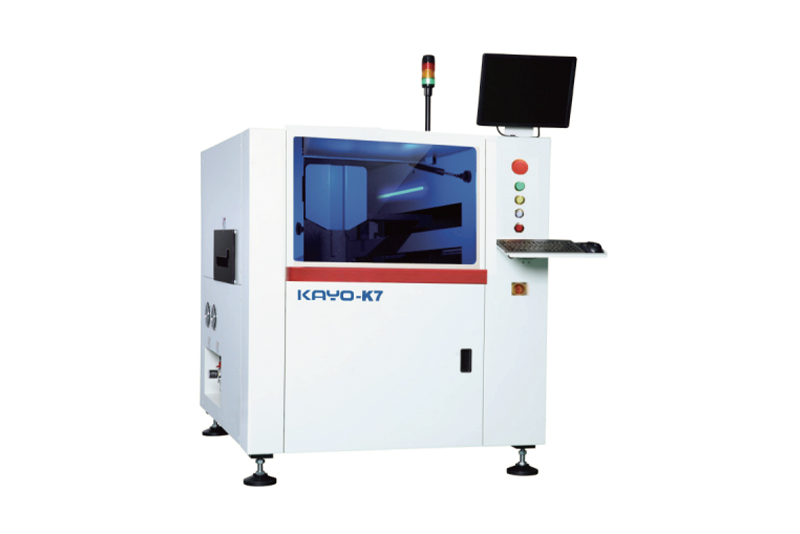

Fully-automatic KAYO-K7

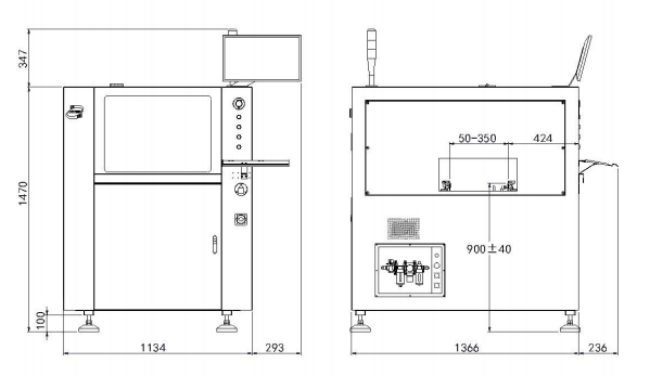

Product Dimensions:


Product Feature:

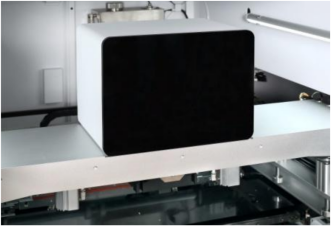

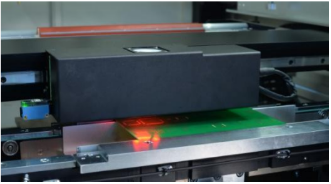

1. Accurate Optical Positioning System:


Four adjustable light sources, adjustable light source intensity, uniform lighting, and more perfect image acquisition; It can effectively identify (including uneven MARKs) and adapt to various types of PCBs with different colors such as tin plating, copper plating, gold plating, tin spraying, FPC, etc.

2. Intelligent Squeegee System:


Intelligent programmable settings, two independent direct coupled motor-driven squeegees, built-in precise pressure control system.

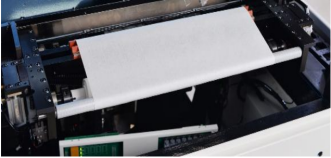

3. High Efficient and Adaptable Stencil Cleaning System:


The new wiping system ensures full contact with the stencil: three cleaning methods: dry, wet, and vacuum, and can be freely selected and combined; Soft and wear-resistant rubber wiping plate, thoroughly cleaned, easy to disassemble, with universal wiping paper length.

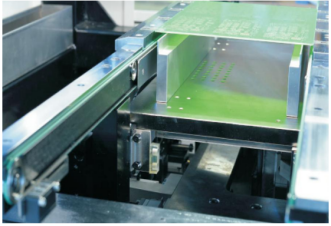

4. Simple and Reliable PCB Positioning System:


Programmable elastic side clamp and magnetic support device.

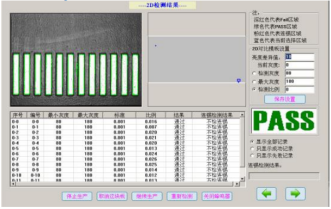

5. 2D Solder Paste Printing Quality Inspection and SPC Analysis


The 2D function can quickly detect printing defects such as offset, insufficient tin, missed printing, and continuous tin, and the number of detection points can be increased arbitrarily; SPC software can analyze machine CPK index through machine collected samples to ensure printing quality.

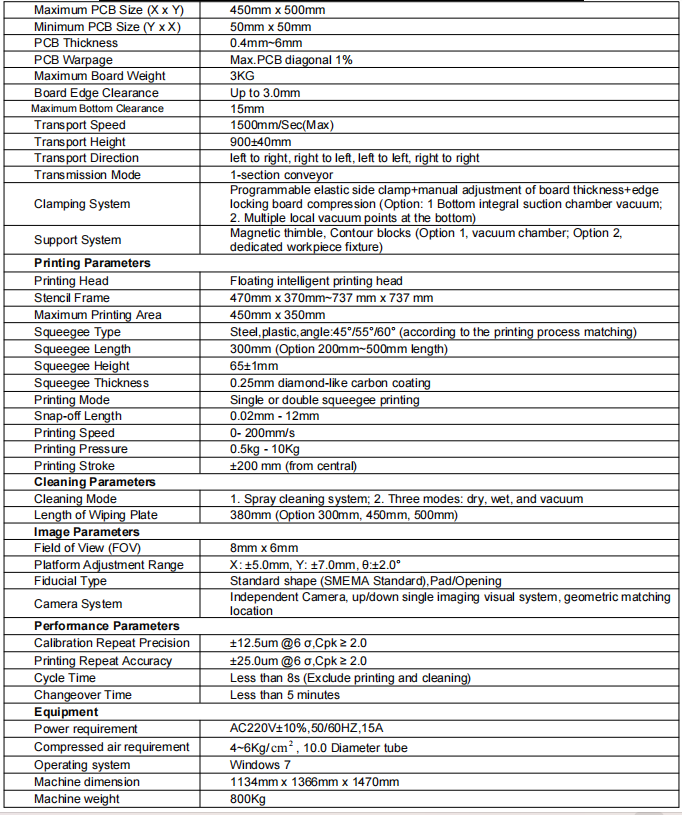

Product Specification:
